ข-8

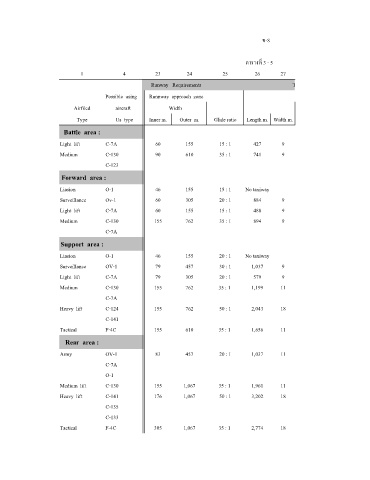

ตารางที 3 - 5
1 4 23 24 25 26 27
Runway Requirements Taxiway Requirements

Possible using Runnway approach zone
Airfiled aircraft Width

Type Us type Inner m. Outer m. Glide ratio Length m. Width m.
Battle area :
Light lift C-7A 60 155 15 : 1 427 9

Medium C-130 90 610 35 : 1 741 9
C-123
Forward area :

Liasion O-1 46 155 15 : 1 No taxiway
Surveillance Ov-1 60 305 20 : 1 884 9
Light lift C-7A 60 155 15 : 1 488 9
Medium C-130 155 762 35 : 1 894 9

C-7A
Support area :
Support area :
Liasion O-1 46 155 20 : 1 No taxiway
Surveillance OV-1 79 457 30 : 1 1,037 9
Light lift C-7A 79 305 20 : 1 579 9
Medium C-130 155 762 35 : 1 1,199 11
C-7A
Heavy lift C-124 155 762 50 : 1 2,043 18

C-141
Tactical F-4C 155 610 35 : 1 1,656 11
Rear area :

Army OV-1 83 457 20 : 1 1,037 11
C-7A
O-1
Medium lift C-130 155 1,067 35 : 1 1,961 11

Heavy lift C-141 176 1,067 50 : 1 3,202 18
C-135
C-133
Tactical F-4C 305 1,067 35 : 1 2,774 18
