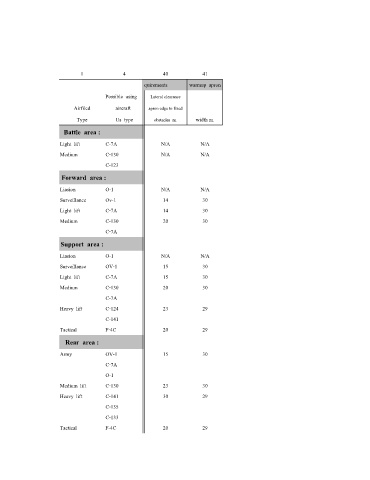

1 4 40 41
Mass apron parking requirements warmup apron

Possible using Lateral clearance
Airfiled aircraft apron edge to fixed

Type Us type obstacles m. width m.
Battle area :
Light lift C-7A N/A N/A

Medium C-130 N/A N/A
C-123
Forward area :

Liasion O-1 N/A N/A
Surveillance Ov-1 14 30
Light lift C-7A 14 30
Medium C-130 20 30

C-7A
Support area :
Support area :
Liasion O-1 N/A N/A
Surveillance OV-1 15 30
Light lift C-7A 15 30
Medium C-130 20 30
C-7A
Heavy lift C-124 23 29

C-141
Tactical F-4C 20 29
Rear area :

Army OV-1 15 30
C-7A
O-1
Medium lift C-130 23 30

Heavy lift C-141 30 29
C-135
C-133
Tactical F-4C 20 29
