ข-10

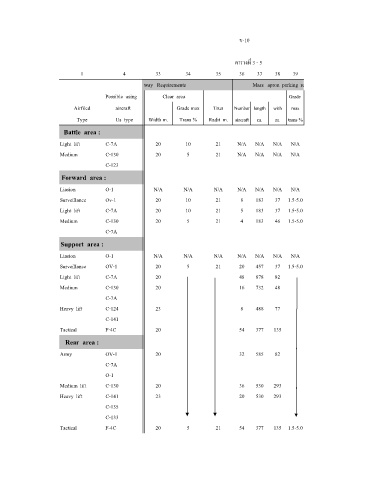

ตารางที 3 - 5
1 4 33 34 35 36 37 38 39
Taxiway Requirements Mass apron parking requirements

Possible using Clear area Grade
Airfiled aircraft Grade max Trun Number length with max

Type Us type Width m. Trans % Radit m. aircraft m. m. trans %
Battle area :
Light lift C-7A 20 10 21 N/A N/A N/A N/A

Medium C-130 20 5 21 N/A N/A N/A N/A
C-123
Forward area :

Liasion O-1 N/A N/A N/A N/A N/A N/A N/A
Surveillance Ov-1 20 10 21 8 183 37 1.5-5.0
Light lift C-7A 20 10 21 5 183 37 1.5-5.0
Medium C-130 20 5 21 4 183 46 1.5-5.0

C-7A
Support area :
Support area :
Liasion O-1 N/A N/A N/A N/A N/A N/A N/A
Surveillance OV-1 20 5 21 20 457 37 1.5-5.0
Light lift C-7A 20 48 878 82
Medium C-130 20 16 732 48
C-7A
Heavy lift C-124 23 8 488 77

C-141
Tactical F-4C 20 54 377 135
Rear area :

Army OV-1 20 32 585 82
C-7A
O-1
Medium lift C-130 20 36 530 293

Heavy lift C-141 23 20 530 293
C-135
C-133
Tactical F-4C 20 5 21 54 377 135 1.5-5.0
