Page 116 - ทางและสนามบิน

ข-4 ข-5

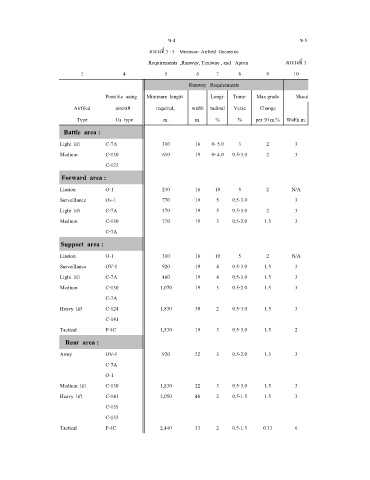

ตารางที 3 - 5 Minimum Airfield Geometric
Requirements ,Runway, Taxiway , and Apron ตารางที 3 -
1 4 5 6 7 8 9 10
Runway Requirements

Possible using Minimum lenght Longi- Trans- Max grade Shoulders
Airfiled aircraft required, width tudinal Verse Change

Type Us type m. m. % % per 30 m.% Width m.
Battle area :
Light lift C-7A 310 16 0- 5.0 3 2 3

Medium C-130 610 19 0- 4.0 0.5-3.0 2 3
C-123
Forward area :

Liasion O-1 230 16 10 5 2 N/A
Surveillance Ov-1 770 19 5 0.5-3.0 3
Light lift C-7A 370 19 5 0.5-3.0 2 3
Medium C-130 770 19 3 0.5-2.0 1.5 3

C-7A
Support area :
Support area :
Liasion O-1 310 16 10 5 2 N/A
Surveillance OV-1 920 19 4 0.5-3.0 1.5 3
Light lift C-7A 460 19 4 0.5-3.0 1.5 3
Medium C-130 1,070 19 3 0.5-2.0 1.5 3
C-7A
Heavy lift C-124 1,830 30 2 0.5-3.0 1.5 3

C-141
Tactical F-4C 1,530 19 3 0.5-3.0 1.5 2
Rear area :

Army OV-1 920 22 3 0.5-2.0 1.5 3
C-7A
O-1
Medium lift C-130 1,830 22 3 0.5-3.0 1.5 3

Heavy lift C-141 3,050 48 2 0.5-1.5 1.5 3
C-135
C-133
Tactical F-4C 2,440 33 2 0.5-1.5 0.33 6
