ข-3

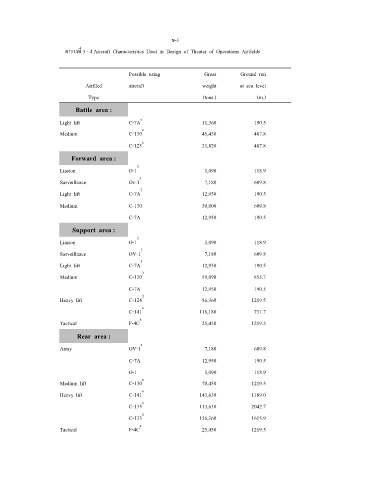

ตารางที 3 - 4 Aircraft Characteristics Used in Design of Theater of Operations Airfields

Possible using Gross Ground run
Airfiled aircraft weight at sea level

Type (tons.) (m.)
Battle area :

Light lift C-7A a 11,360 190.5
Medium C-130 a 45,450 487.8

C-123 a 21,820 487.8
Forward area :

Liasion O-1 3 1,090 118.9
Surveillance Ov-1 3 7,180 609.8

Light lift C-7A 3 12,950 190.5
Medium C-130 50,000 609.8

C-7A 12,950 190.5
Support area :
3
Liasion O-1 1,090 118.9
3
Surveillance OV-1 7,180 609.8
Light lift C-7A 3 12,950 190.5
Medium C-130 3 59,090 853.7
C-7A 12,950 190.5

Heavy lift C-124 3 86,360 1219.5
C-141 a 118,180 731.7

Tactical F-4C a 25,450 1219.5
Rear area :

Army OV-1 a 7,180 609.8
C-7A 12,950 190.5

O-1 1,090 118.9
Medium lift C-130 a 70,450 1219.5
Heavy lift C-141 a 143,630 1189.0

C-135 a 113,630 2042.7
C-133 a 136,360 1615.9
a
Tactical F-4C 25,450 1219.5
