Page 110 - ทางและสนามบิน

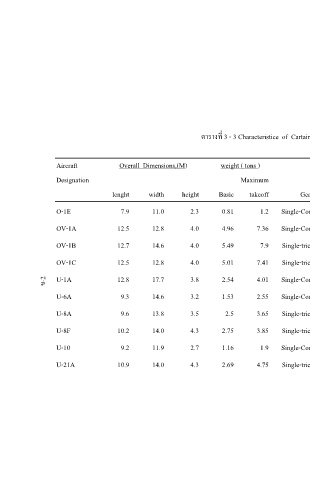

ตารางที 3 - 3 Characteristice of Cartain army Aircraf

Aircraft Overall Dimensions,(M) weight ( tons ) Desigh Main gear tires takeoff (hard surface)

Designation Maximum Gear load Contact Sea level O wind,m
lenght width height Basic takeoff Gear type (kgs.) PSI area (sq.cm.) ground run clear,15m
O-1E 7.9 11.0 2.3 0.81 1.2 Single-Conventional 522.7 21 335.4 118.9 205.8

OV-1A 12.5 12.8 4.0 4.96 7.36 Single-Conventional 2771.4 85 451.6 306.4 442.1

OV-1B 12.7 14.6 4.0 5.49 7.9 Single-tricycle (SN) 2971.4 93 451.6 429.9 666.2

OV-1C 12.5 12.8 4.0 5.01 7.41 Single-tricycle (SN) 2835 89 451.6 439 679.9

ข-2 U-1A 12.8 17.7 3.8 2.54 4.01 Single-Conventional 1363.6 28 658.1 289.6 497
U-6A 9.3 14.6 3.2 1.53 2.55 Single-Conventional 1136.4 25 606.5 231.7 329.3

U-8A 9.6 13.8 3.5 2.5 3.65 Single-tricycle (SN) 1374.5 35 471 385.7 657

U-8F 10.2 14.0 4.3 2.75 3.85 Single-tricycle (SN) 35 324.7 506.1
U-10 9.2 11.9 2.7 1.16 1.9 Single-Conventional 30 88.4 152.4

U-21A 10.9 14.0 4.3 2.69 4.75 Single-tricycle (SN) 46 457.3 609.8
