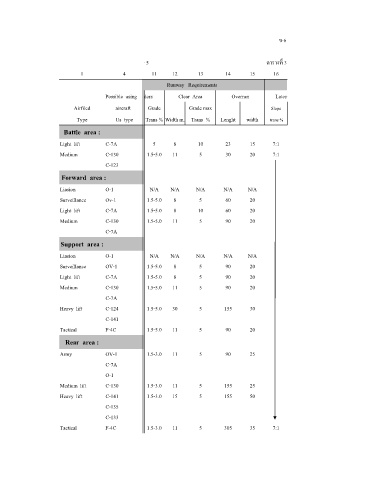

Runway Requirements

S
Possible usinghoulders Clear Area Overrun Lateral saftety zone
Airfiled aircraft Grade Grade max Slope

Type Us type Trans % Width m. Trans % Lenght width trans %
Battle area :
Light lift C-7A 5 8 10 23 15 7:1

Medium C-130 1.5-5.0 11 5 30 20 7:1
C-123
Forward area :

Liasion O-1 N/A N/A N/A N/A N/A
Surveillance Ov-1 1.5-5.0 8 5 60 20
Light lift C-7A 1.5-5.0 8 10 60 20
Medium C-130 1.5-5.0 11 5 90 20

C-7A
Support area :
Support area :
Liasion O-1 N/A N/A N/A N/A N/A
Surveillance OV-1 1.5-5.0 8 5 90 20
Light lift C-7A 1.5-5.0 8 5 90 20
Medium C-130 1.5-5.0 11 5 90 20
C-7A
Heavy lift C-124 1.5-5.0 30 5 155 30

C-141
Tactical F-4C 1.5-5.0 11 5 90 20
Rear area :

Army OV-1 1.5-3.0 11 5 90 25
C-7A
O-1
Medium lift C-130 1.5-3.0 11 5 155 25

Heavy lift C-141 1.5-3.0 15 5 155 50
C-135
C-133
Tactical F-4C 1.5-3.0 11 5 305 35 7:1
