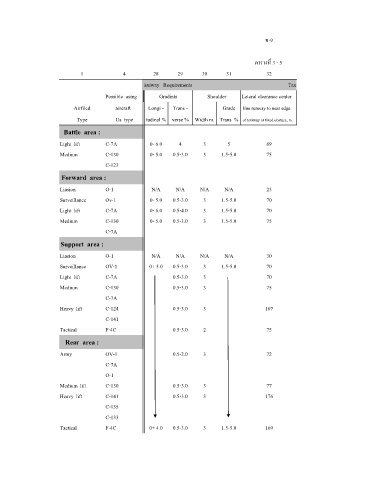

ตารางที 3 - 5
1 4 28 29 30 31 32
Taxiway Requirements Taxiway Requirements

Possible using Gradints Shoulder Lateral clearance center
Airfiled aircraft Longi - Trans - Grade line runway to near edge

Type Us type tudinal % verse % Width m. Trans % of texiway or fixed obstace, m.
Battle area :
Light lift C-7A 0- 6.0 4 3 5 69

Medium C-130 0- 5.0 0.5-3.0 3 1.5-5.0 75
C-123
Forward area :

Liasion O-1 N/A N/A N/A N/A 23
Surveillance Ov-1 0- 5.0 0.5-3.0 3 1.5-5.0 70
Light lift C-7A 0- 6.0 0.5-4.0 3 1.5-5.0 70
Medium C-130 0- 5.0 0.5-3.0 3 1.5-5.0 75

C-7A
Support area :
Support area :
Liasion O-1 N/A N/A N/A N/A 30
Surveillance OV-1 0+ 5.0 0.5-3.0 3 1.5-5.0 70
Light lift C-7A 0.5-3.0 3 70
Medium C-130 0.5-3.0 3 75
C-7A
Heavy lift C-124 0.5-3.0 3 107

C-141
Tactical F-4C 0.5-3.0 2 75
Rear area :

Army OV-1 0.5-2.0 3 72
C-7A
O-1
Medium lift C-130 0.5-3.0 3 77

Heavy lift C-141 0.5-3.0 3 176
C-135
C-133
Tactical F-4C 0+ 4.0 0.5-3.0 3 1.5-5.0 169
