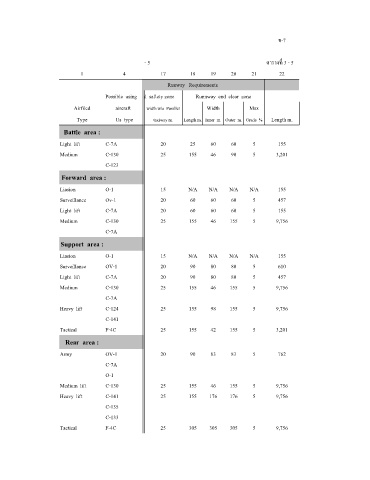

Runway Requirements

Possible usingLateral saftety zone Runnway end clear zone
Airfiled aircraft width w/o Parallet Width Max

Type Us type taxiway m. Length m. Inner m. Outer m. Grade % Length m.
Battle area :
Light lift C-7A 20 25 60 60 5 155

Medium C-130 25 155 46 90 5 3,201
C-123
Forward area :

Liasion O-1 15 N/A N/A N/A N/A 155
Surveillance Ov-1 20 60 60 60 5 457
Light lift C-7A 20 60 60 60 5 155
Medium C-130 25 155 46 155 5 9,756

C-7A
Support area :
Support area :
Liasion O-1 15 N/A N/A N/A N/A 155
Surveillance OV-1 20 90 80 80 5 610
Light lift C-7A 20 90 80 80 5 457
Medium C-130 25 155 46 155 5 9,756
C-7A
Heavy lift C-124 25 155 98 155 5 9,756

C-141
Tactical F-4C 25 155 42 155 5 3,201
Rear area :

Army OV-1 20 90 83 83 5 762
C-7A
O-1
Medium lift C-130 25 155 46 155 5 9,756

Heavy lift C-141 25 155 176 176 5 9,756
C-135
C-133
Tactical F-4C 25 305 305 305 5 9,756
