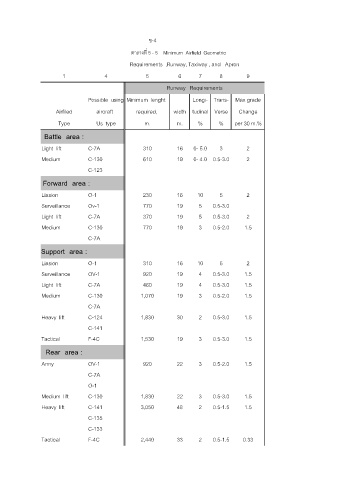

ตารางที 5 - 5 Minimum Airfield Geometric
่
Requirements ,Runway, Taxiway , and Apron

1 4 5 6 7 8 9
Runway Requirements

Possible using Minimum lenght Longi- Trans- Max grade
Airfiled aircraft required, width tudinal Verse Change

Type Us type m. m. % % per 30 m.%

Battle area :
Light lift C-7A 310 16 0- 5.0 3 2

Medium C-130 610 19 0- 4.0 0.5-3.0 2
C-123

Forward area :

Liasion O-1 230 16 10 5 2
Surveillance Ov-1 770 19 5 0.5-3.0
Light lift C-7A 370 19 5 0.5-3.0 2

Medium C-130 770 19 3 0.5-2.0 1.5
C-7A

Support area :
Liasion O-1 310 16 10 5 2

Surveillance OV-1 920 19 4 0.5-3.0 1.5
Light lift C-7A 460 19 4 0.5-3.0 1.5

Medium C-130 1,070 19 3 0.5-2.0 1.5
C-7A
Heavy lift C-124 1,830 30 2 0.5-3.0 1.5

C-141
Tactical F-4C 1,530 19 3 0.5-3.0 1.5

Rear area :

Army OV-1 920 22 3 0.5-2.0 1.5
C-7A
O-1

Medium lift C-130 1,830 22 3 0.5-3.0 1.5
Heavy lift C-141 3,050 48 2 0.5-1.5 1.5
C-135

C-133
Tactical F-4C 2,440 33 2 0.5-1.5 0.33
