ข-18

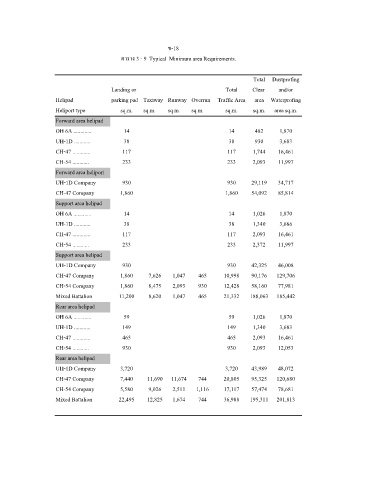

ตาราง 3 - 9 Typical Minimum area Requirements.

Total Dustprofing
Landing or Total Clear and/or
Helipad parking pad Taxiway Runway Overrun Traffic Area area Waterprofing

Heliport type sq.m. sq.m. sq.m. sq.m. sq.m. sq.m. area sq.m.
Forward area helipad
OH 6A ............. 14 14 482 1,870
UH-1D ............ 38 38 930 3,683
CH-47 ............. 117 117 1,744 16,461
CH-54 ............ 233 233 2,093 11,997
Forward area heliport
UH-1D Company 930 930 29,119 34,717
CH-47 Company 1,860 1,860 54,092 85,814

Support area helipad
OH 6A ............. 14 14 1,026 1,870
UH-1D ............ 38 38 1,340 3,686
CH-47 ............. 117 117 2,093 16,461
CH-54 ............ 233 233 2,372 11,997
Support area helipad

UH-1D Company 930 930 42,325 46,008
CH-47 Company 1,860 7,626 1,047 465 10,998 90,176 129,706
CH-54 Company 1,860 8,475 2,093 930 12,428 58,160 77,981
Mixed Battalion 11,200 8,620 1,047 465 21,332 188,063 185,442
Rear area helipad
OH 6A ............. 59 59 1,026 1,870
UH-1D ............ 149 149 1,340 3,683
CH-47 ............. 465 465 2,093 16,461
CH-54 ............ 930 930 2,093 12,053

Rear area helipad
UH-1D Company 3,720 3,720 43,989 48,072
CH-47 Company 7,440 11,690 11,674 744 20,805 95,325 120,680
CH-54 Company 5,580 9,026 2,511 1,116 17,117 57,474 78,681
Mixed Battalion 22,495 12,825 1,674 744 36,988 195,311 201,813
